• Fuji Electric's Programmable Controllers are unparalleled in reliability and quality.

    With over 30 years of experience in the industry, we are proud to

     offer these fine products coupled with dedicated customer support.

Fuji Automation, now part of Omnilogix, is the Australian distributor of Fuji Electric's Programmable Controller range of products.

Products

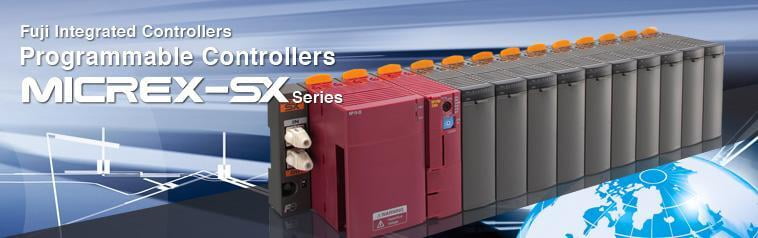

Micrex-SX SPH Range

The Micrex-SX SPH range offers high-speed advanced machine control.


Four CPU options are available: SPH200, SPH2000, SPH300 and SPH3000. All have a capacity of up to 8192 I/O. A 1ms program scan and I/O refresh is possible. Function and performance distribution configurable with multi-CPU system configuration of up to 8 CPU's.  CPU redundancy, power supply redundancy, 1:1 warm standby, N:1 cold standby can be selected as required.


Both hardware and software (SX-Programmer Expert) conform to the IEC 61131 international standard for programmable controllers.


Can be programmed with SX-Programmer Expert or SX-Programmer Standard.

Micrex-SX SPH Series Catalogue

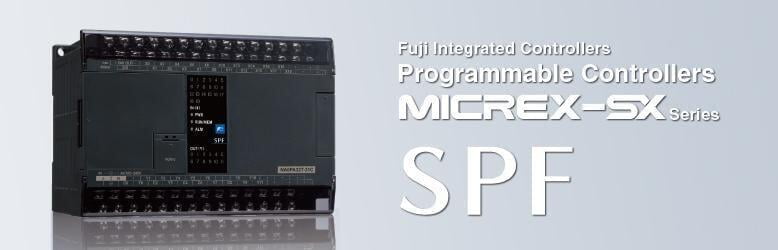

Micrex-SX SPF Range

The Micrex-SX SPF range offers high-performance in a compact body with in-built I/O.


The Micrex-SX SPF has two types of basic units: the high-functionality type NA0PA, which is suitable for positioning control while connected to a servo system; and the standard type NA0PB, which is suitable for the control of general equipment.


The Micrex-SX SPF has rich communication functions: RS-232C, RS-485 and Ethernet communication can be established by simply mounting a small board to the basic unit. Communication functions can also be achieved through use of an extension unit on the left side.


The Micrex-SX SPF offers a unique lineup of modules compatible with load cells used for metering and weighing systems, tank scales, etc.


Both hardware and software (SX-Programmer Expert) conform to the IEC 61131 international standard for programmable controllers.


Can be programmed with SX-Programmer Expert or SX-Programmer Standard.

Micrex-SX SPF Catalogue

Technical Support

If you have any queries regarding Fuji Electric's PLC range, including upgrading from past models, please don't hesitate to contact us.


Comprehensive technical documents for current and past models are available from Fuji Electric: Fe Library.


Further information is available from Fuji Electric Global: FUJI PROGRAMMABLE CONTROLLER PLC
